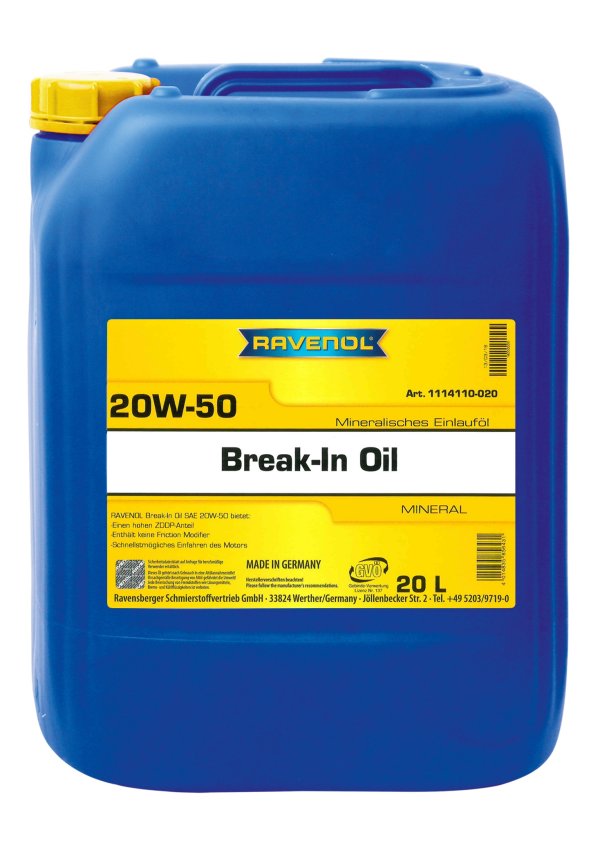

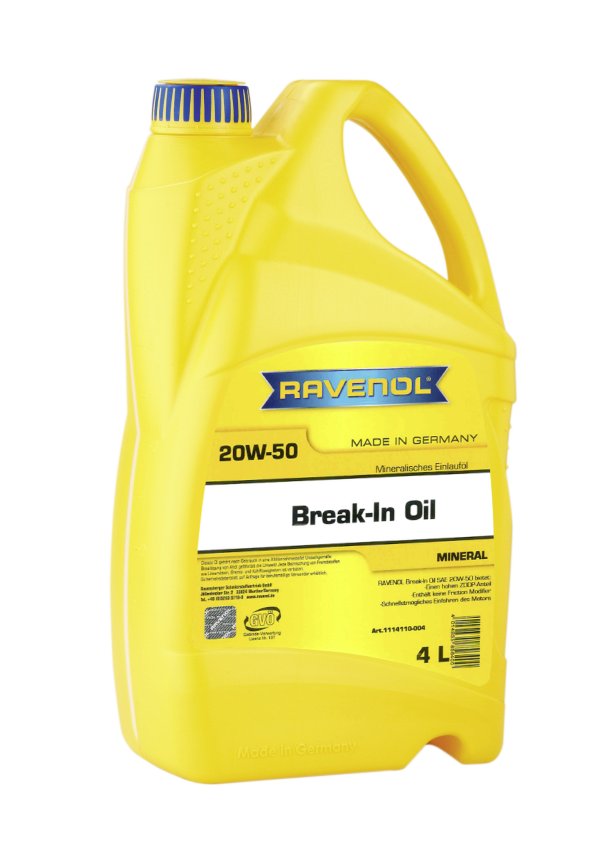

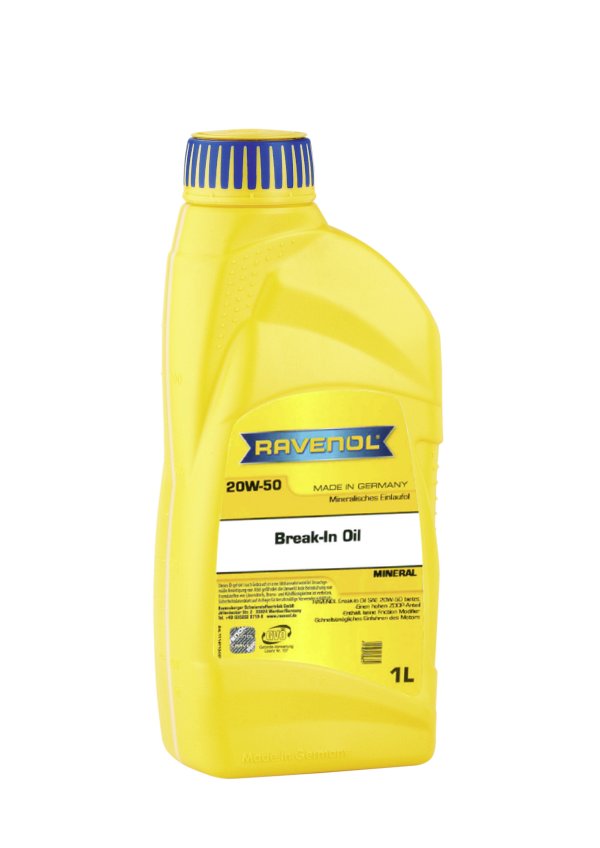

RAVENOL Break-In Oil SAE 20W-50

Inactive options are available upon request

Category: Other engine oil
Item number: 1114110
Viscosity: 20W-50
Specification: SAE 20W-50
Oil type: Mineral oil
Application area: Car, Oldtimer

RAVENOL Break-In Oil SAE 20W-50 is a mineral feed oil for the start-up filling and breaking-in of repaired or overhauled engines with special high-pressure additives that can withstand very high pressure.

RAVENOL Break-In Oil SAE 20W-50 dispenses with the use of friction coefficient improving additives (friction modifier) to considerably shorten the break-in phase for rebuilt and modified engines. The piston rings are rapidly seated. .Due to its high content of 2.5% ZDDP (zinc dithiophosphate) (equivalent to approx. 2,500 ppm zinc), RAVENOL Break-In Oil SAE 20W-50 is especially recommended for driving classic V8 engines with flat tappets.

RAVENOL Break-In Oil SAE 20W-50 protects the camshaft, lifter and valve train in the running-in phase of the engine.

RAVENOL Break-In Oil SAE 20W-50 is very well suited for all high-lift and high-speed camshafts and regulates the first run-in clearance of engine mounts.

RAVENOL Break-In Oil SAE 20W-50 is well suited for racing engines, which have hardly a warm-up phase.

Application Note

RAVENOL Break-In Oil SAE 20W-50 serves as a classic break-in oil and therefore can only remain in the engine for a short time (max. 1000km). The particularly high levels of anti-wear additives offer extra protection during the critical break-in phase of rebuilt engines. Please pay attention to the specifications of your engine reconditioners during the break-in phase. High engine loads and speeds are to be avoided.

Characteristics

  • Very high levels of ZDDP
  • No friction modifier
  • Breaks the engine in as quickly as possible

Technical Product Data

PropertyUnitDataAudit
Density at 20 °Ckg/m³882,0EN ISO 12185
ColourrotVISUELL
Viscosity at 100 °Cmm²/s18,3DIN 51562-1
Viscosity at 40 °Cmm²/s160,4DIN 51562-1
Viscosity Index VI127DIN ISO 2909
CCS Viscosity at -15 °CmPa*s7330ASTM D5293
Pourpoint°C-33DIN ISO 3016
Flashpoint°C242DIN EN ISO 2592
tbnmg KOH/g5,0ASTM D2896
Sulphated Ash%wt.0,9DIN 51575

All indicated data are approximate values and are subject to the commercial fluctuations.
