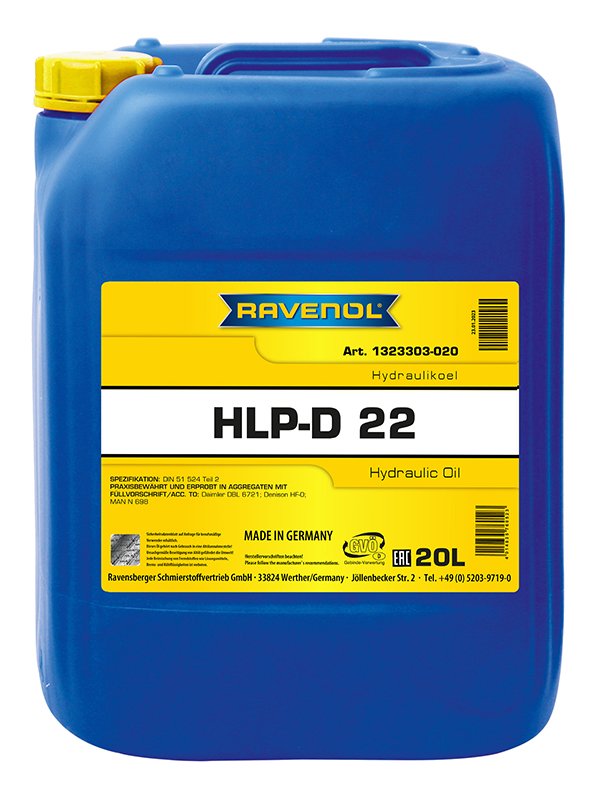

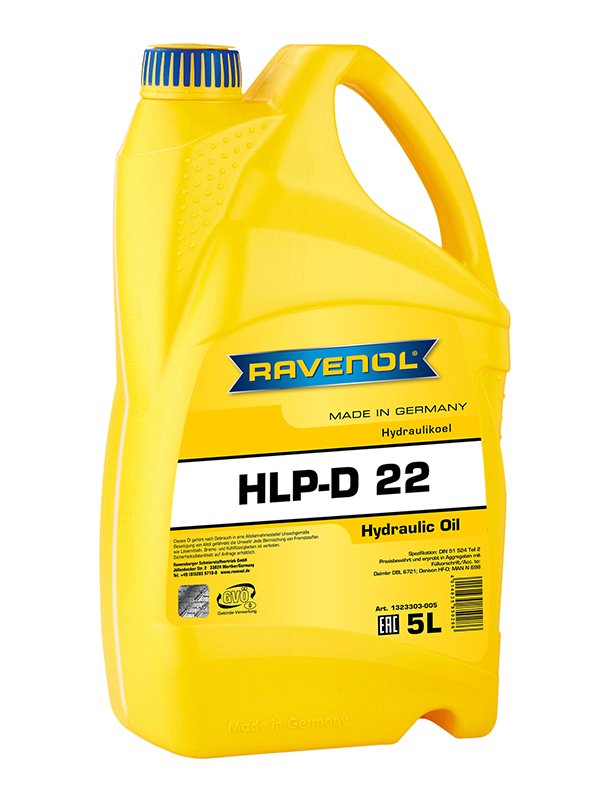

RAVENOL Hydraulikoel HLP-D 22 is detergent hydraulic oil with good net and cleaning effect.
RAVENOL Hydraulikoel HLP-D 22 is designed with selected base oils with additives to prevent corrosion, wear and friction.
RAVENOL Hydraulikoel HLP-D 22 also contains detergent and dispersing agents, which always provide for a clean hydraulic system. These additives dissolve contaminants, hold them in suspension and enabling the cleaning of contaminated hydraulic systems. The functional elements of a hydraulic system thereby remain free of deposits and bonds. This will emulsified penetrating water and ensure trouble-free operation of the hydraulic system.
Application Note
RAVENOL Hydraulikoel HLP-D 22 is for use in agriculture hydraulic systems, construction machinery, cement factories, foundries, and electro-plate clutches. It can also be used as functional test oil, inlet oil for aggregates and machinery, textile machinery and machine tools.
Characteristics
- High aging resistance and high corrosion protection
- Good air release
- Excellent wear protection and proper conduct foam
- Very good viscosity-temperature behaviour
- neutral behaviour towards sealing materials
- Extremely good detergent and dispersant characteristics
- Excellent corrosion protection even at the ingress of wetness
Technical Product Data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Density at 20 °C | kg/m³ | 849,0 | EN ISO 12185 |
| Colour | gelbbraun | VISUELL | |
| Viscosity at 100 °C | mm²/s | 4,6 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 23,0 | DIN 51562-1 |
| Viscosity Index VI | 120 | DIN ISO 2909 | |
| Pourpoint | °C | -36 | DIN ISO 3016 |
| Flashpoint | °C | 200 | DIN EN ISO 2592 |
All indicated data are approximate values and are subject to the commercial fluctuations.
