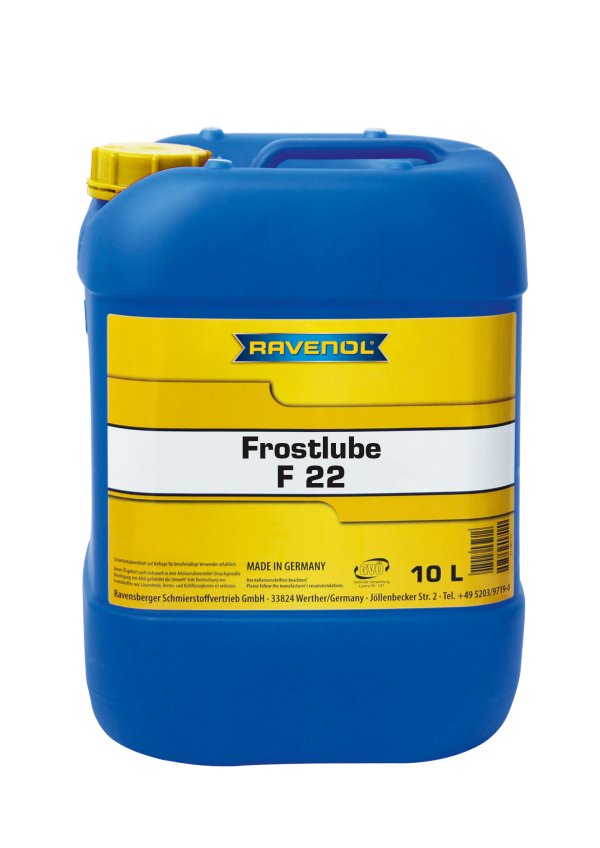

RAVENOL Frostlube F 22 is special hydraulic fluid designed on the basis of specially selected base oils for the low-temperature performance and high quality hydraulic additives including corrosion and oxidation inhibitors as well as additives for the reduction of wear and foaming.
RAVENOL Frostlube F 22 is a high quality, anti-wear hydraulic oil with a very high viscosity index, good shear stability and excellent low-temperature properties.
Application Note
RAVENOL Frostlube F 22 is excellently suitable for application in extremely low temperatures, e.g. equipment in refrigerated warehouses or mobile facilities, which are used outdoors under extreme winter conditions.
RAVENOL Frostlube F 22 is specifically formulated so that a consistent viscosity is extensively given even in the case of extremely varying temperatures.
RAVENOL Frostlube F 22 is a shear stable, high quality hydraulic oil and therefore, suitable for application under extreme hydraulic conditions without risk for the system. If the oil temperature is permanently above 80°C, the hydraulic system should be pressurized to minimize oil loss due to evaporation.
Characteristics
- An extremely high viscosity index so that the good lubrication properties and the protection in the eventof minimal viscosity alterations are ensured by a wide temperature range.
- A low pour point; therefore, application at extremely low temperatures is permitted without the risk offreezing.
- An extremely good resistance to oxidation and a very good shear stability; therefore, longer service lifeof the oil under the usually extreme application conditions.
- Protection of the hydraulic system against corrosive influences.
- Anti-wear effect.
- Load bearing capability.
- Longer service life of the oil.
Technical Product Data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Density at 20 °C | kg/m³ | 837,0 | EN ISO 12185 |
| Colour | grün | VISUELL | |
| Viscosity at 100 °C | mm²/s | 7,3 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 25,4 | DIN 51562-1 |
| Viscosity Index VI | 274 | DIN ISO 2909 | |
| Pourpoint | °C | -63 | DIN ISO 3016 |
| Flashpoint | °C | 156 | DIN EN ISO 2592 |
All indicated data are approximate values and are subject to the commercial fluctuations.
