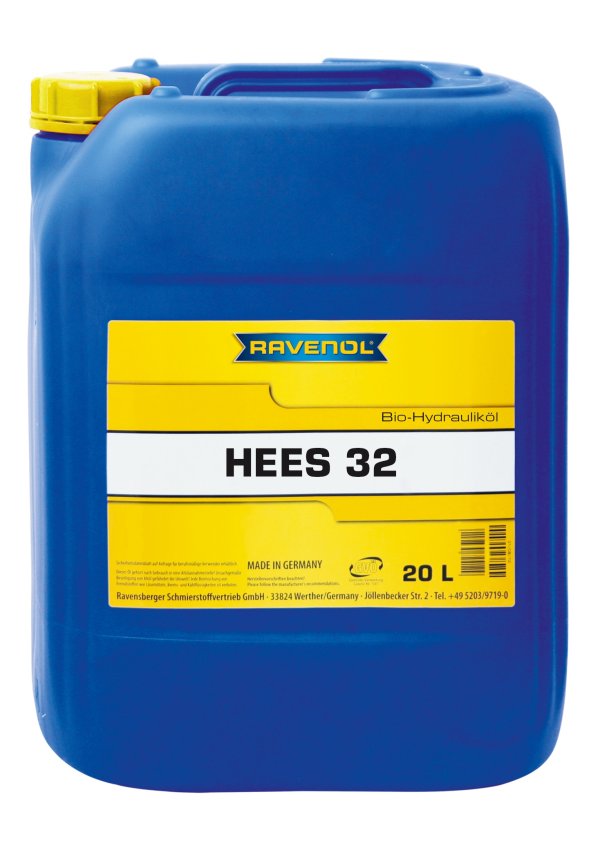

RAVENOL BIO-Hydraulikoel HEES 32 is based on synthetic, easily biodegradable ester and a powerful, environmentally friendly combination of additives which gives the product excellent properties regarding oxidation stability, corrosion, low temperatures as well as EP behaviour.
Compared with products of vegetable triglyceride base, RAVENOL BIO-Hydraulikoel HEES 32 has much better high temperature oxidation stability.
Application Note
RAVENOL BIO-Hydraulikoel HEES 32 is used wherever there is the danger of hydraulic fluid leaking into the ground or waste water. This includes all equipment operating in or near areas of water purification or water protection or near surface water, such as e.g. sewage treatment plants, dredging ships and floating dredges, lock hydraulics and river weirs, pipe and tunnel diving machines, - hydraulic aggregates in forests and on plains, earth moving machines in water collecting areas, forestry machines.
Characteristics
- Meets the requirements of the Federal Ministry for consumer protection, alimentation and agricultureregarding good biodegradability and technical specifications.
- On account of the used raw materials, RAVENOL BIO-Hydraulikoel HEES 32 is classified as waterpolluting class NWG (not water-polluting) – German classification.
Technical Product Data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Density at 20 °C | kg/m³ | 908,0 | EN ISO 12185 |
| Colour | gelbbraun | VISUELL | |
| Viscosity at 100 °C | mm²/s | 7,25 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 32,0 | DIN 51562-1 |
| Viscosity Index VI | 248 | DIN ISO 2909 | |
| Pourpoint | °C | -30 | DIN ISO 3016 |
| Flashpoint | °C | 260 | DIN EN ISO 2592 |
| Seq. I at 24 °C | ml/ml | 10/0 | ASTM D892 |
| Seq. II at 93,5 °C | ml/ml | 5/0 | ASTM D892 |
| Seq. III at 24 °C after 93,5 °C | ml/ml | 5/0 | ASTM D892 |
| Copper Strip Test at 121 °C | 1a | ASTM D130 | |
| Air release at 50 °C, max. | min. | 1 | DIN ISO 9120 |
| Part of renewable raw materials (radio carbon meth | % | 80 | ASTM D3266 |
All indicated data are approximate values and are subject to the commercial fluctuations.
