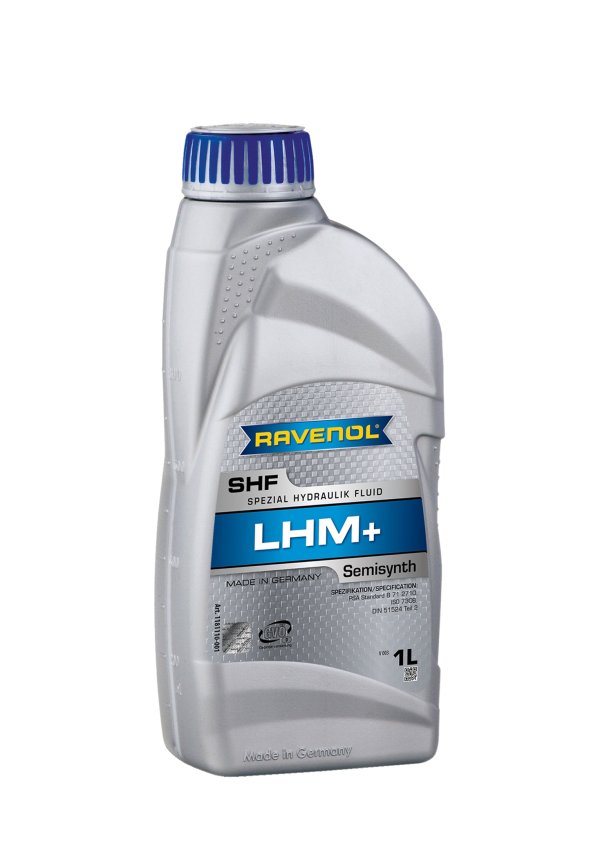

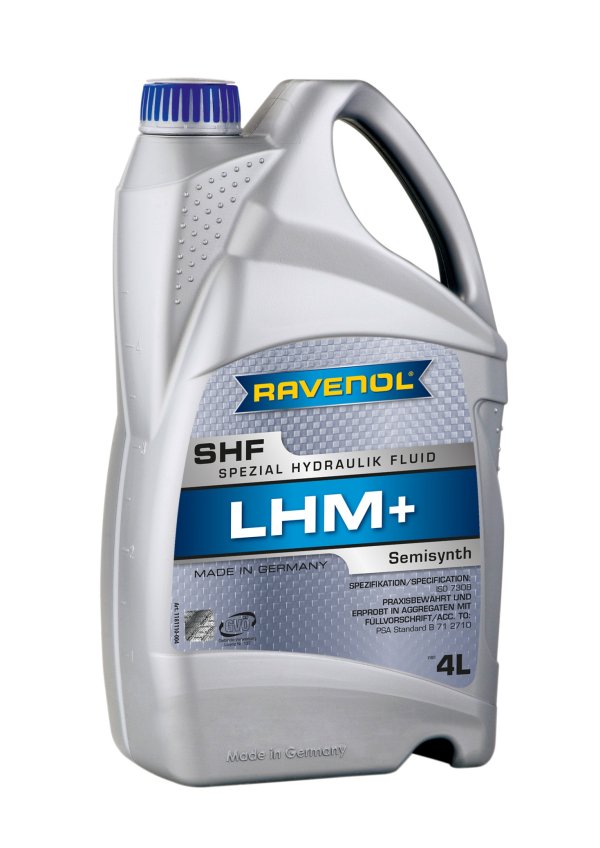

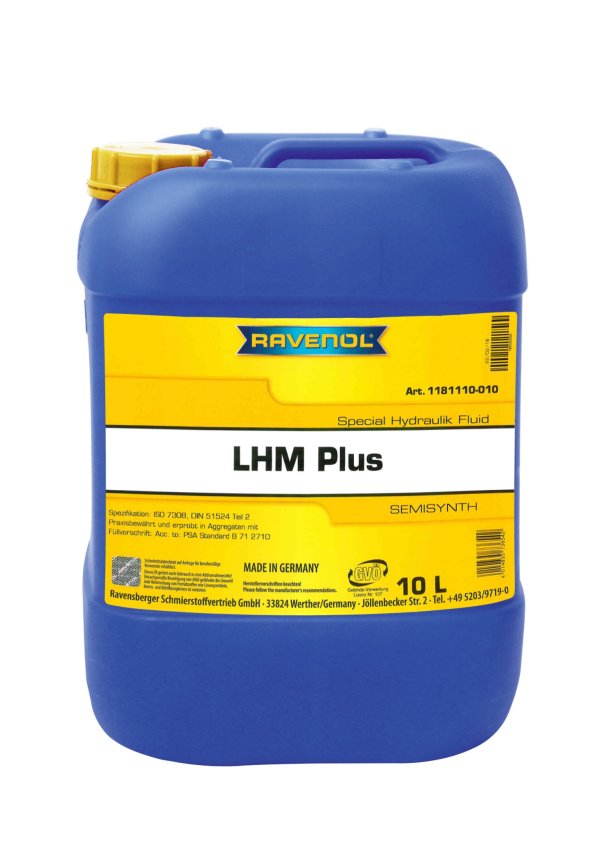

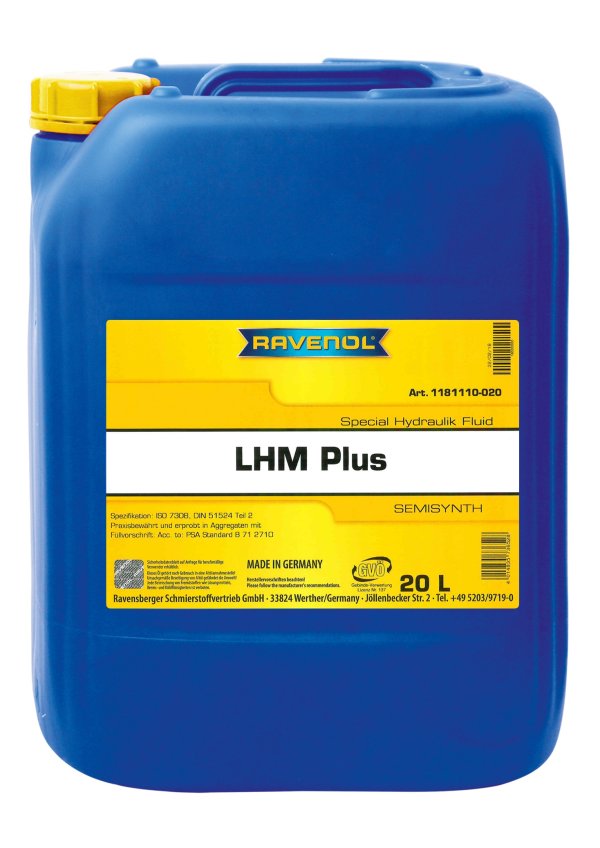

RAVENOL LHM PLUS Fluid is special semisynthetic hydraulic fluid especially designed for use in vehicles of the PSA group (Citroen, Peugeot).
Due to its special formulation RAVENOL LHM PLUS Fluid has significantly improved low temperature viscosity and fulfils the PSA approval specification.
Application Note
RAVENOL LHM PLUS Fluid is used in vehicles with appropriately marked fluid reservoir for the hydraulic operation or support of braking, steering and suspension functions.
RAVENOL LHM PLUS Fuid is miscible with earlier LHM fluids.
Characteristics
- A low pour point.
- Excellent viscosity behavior at low temperatures.
- An extremely high viscosity index.
- Low viscosity at low temperatures.
- Neutral behavior towards sealing materials.
Technical Product Data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Density at 20 °C | kg/m³ | 837,0 | EN ISO 12185 |
| Colour | klar, grün | VISUELL | |
| Viscosity at 100 °C | mm²/s | 7,2 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 25,3 | DIN 51562-1 |
| Viscosity at -40 °C | 2600 | ASTM D445 | |
| Viscosity Index VI | 273 | DIN ISO 2909 | |
| Brookfield Viscosity at -40 °C | mPa*s | 2200 | ASTM D2983 |
| Pourpoint | °C | -63 | DIN ISO 3016 |
| Flashpoint | °C | 159 | DIN EN ISO 2592 |
All indicated data are approximate values and are subject to the commercial fluctuations.
