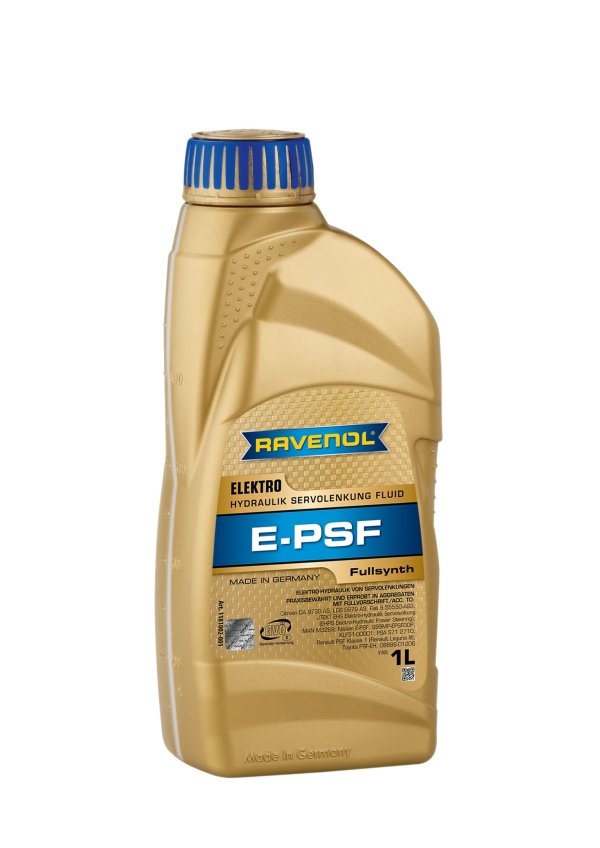

RAVENOL E- PSF Fluid is a specific full synthetic fluid for electro-hydraulic power steering.
RAVENOL E- PSF Fluid is guaranteeing an optimized power transmission.
RAVENOL E- PSF Fluid is designed on the basis of particularly high quality base oils with special additives and inhibition which ensures the proper functioning of the electro-hydraulic power steering system.
Application Note
RAVENOL E- PSF Fluid is especially developed for the use in electro-hydraulic power steering systems of Nissan and Toyota (JTEKT EHS Elektro-Hydraulik Servolenkung/EHPS Electro-Hydraulic Power Steering).
RAVENOL E- PSF Fluid is also suitable for the hydropneumatic Hydractive III und Hydractive III+ suspension of Citroën.
Characteristics
- A very low pour point
- An excellent foam prevention, no foam formation
- A good lubricating ability even at low temperatures in winter
- A high and stable viscosity index
- A very good oxidation stability
- Excellent protection against wear and tear, corrosion and foam formation
- Well-tuned friction characteristics
- Neutral behaviour against sealing materials
- Neutral behaviour because of inhibition against non-ferrous metals
Technical Product Data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Density at 20 °C | kg/m³ | 821,0 | EN ISO 12185 |
| Colour | farblos | VISUELL | |
| Viscosity at 100 °C | mm²/s | 6,1 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 19,0 | DIN 51562-1 |
| Viscosity at -40 °C | mm²/s | 960 | ASTM D445 |
| Viscosity Index VI | 312 | DIN ISO 2909 | |
| Brookfield Viscosity at -40 °C | mPa*s | 900 | ASTM D2983 |
| Pourpoint | °C | -75 | DIN ISO 3016 |
| Flashpoint | °C | 154 | DIN EN ISO 2592 |
All indicated data are approximate values and are subject to the commercial fluctuations.
