Category:
Gear oil for manual transmissions and drive axis
Item number:
1223302
Viscosity:
90
Oil type:
Mineral oil

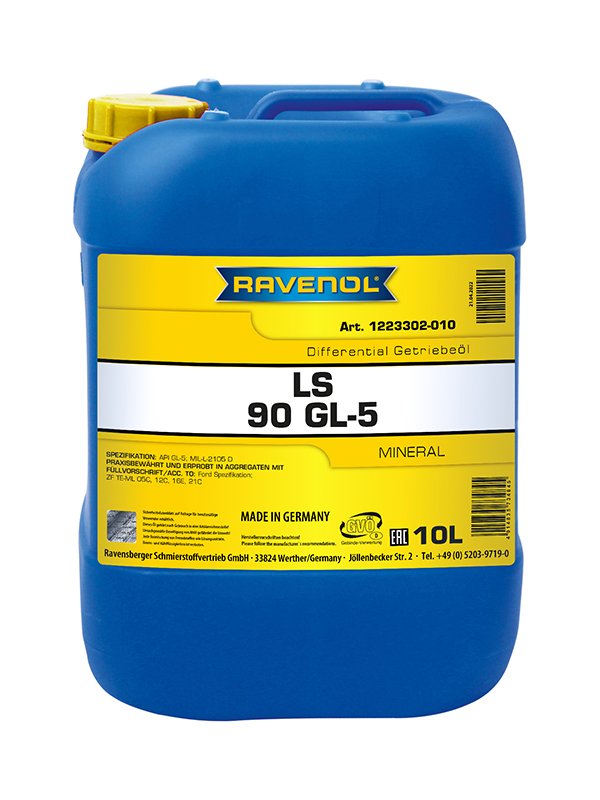

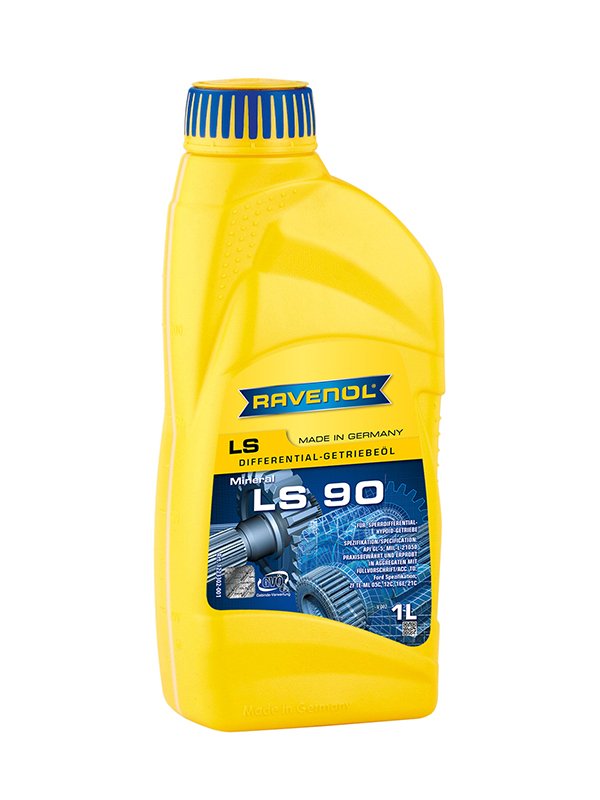

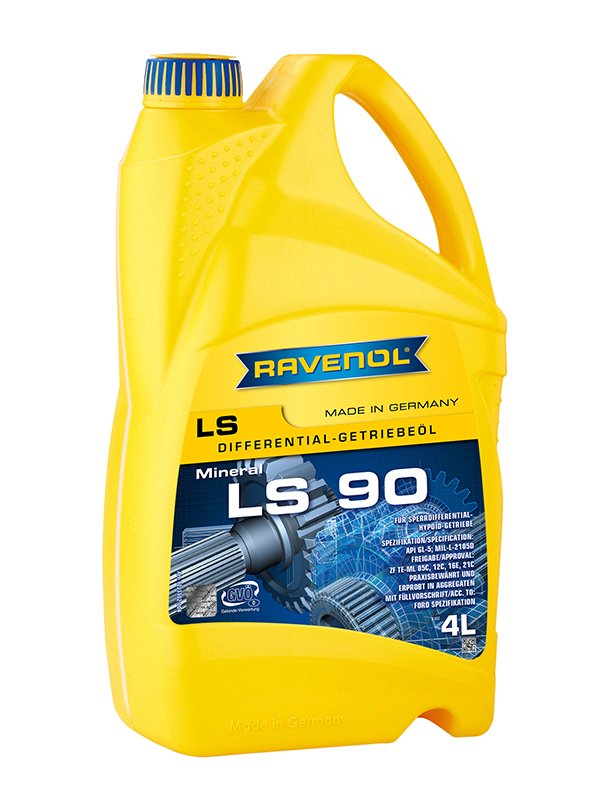

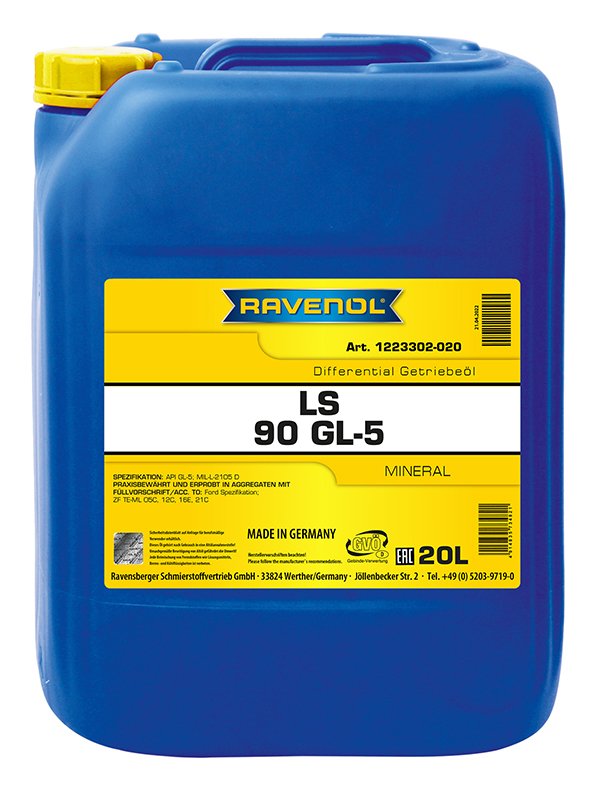

RAVENOL Sperrdiff.-Getr.-Oel LS 90 is locking differential hypoid gear oil that meets the extremely stringent requirements in differential gears and differential lock.
RAVENOL Sperrdiff.-Getr.-Oel LS 90 ensures good adhesion, high pressure-resistant lubricating film and offers excellent "limited slip" (LS) properties against unwanted slip-slip properties. Greatly offset hypoid gear pairs are also under severe operating conditions effectively protected against wear.
Application Note
RAVENOL Sperrdiff.-Getr.-Oel LS 90 GL-5 was specially developed for use in differential with high requirements on differential with differential lock.
Characteristics
- Extremely high load carrying capacity
- Excellent wear protection by EP agents
- Excellent "limited slip" – Features
- Excellent resistance to aging
- High oxidation resistance even under high thermal stress
- Good foam / air separation and behave well at high speeds
- Neutrality towards non-ferrous metals and seals
- Excellent viscosity-temperature behavior
Technical Product Data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Density at 20 °C | kg/m³ | 889,0 | EN ISO 12185 |
| Colour | gelbbraun | VISUELL | |
| Viscosity at 100 °C | mm²/s | 17,6 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 177,3 | DIN 51562-1 |
| Viscosity Index VI | 108 | DIN ISO 2909 | |
| Brookfield Viscosity at -12 °C | mPa*s | 12.400 | ASTM D2983 |
| Pourpoint | °C | -30 | DIN ISO 3016 |
| Flashpoint | °C | 214 | DIN EN ISO 2592 |
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
All indicated data are approximate values and are subject to the commercial fluctuations.
