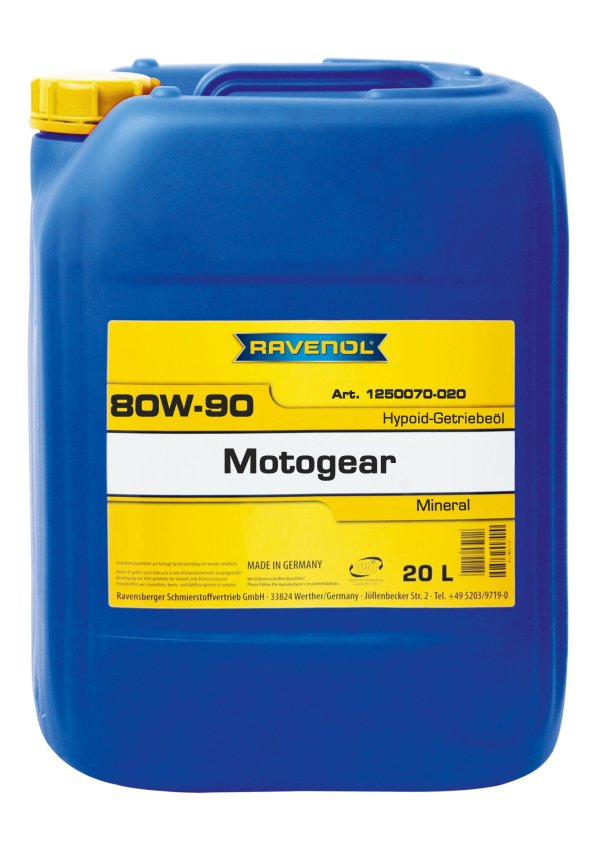

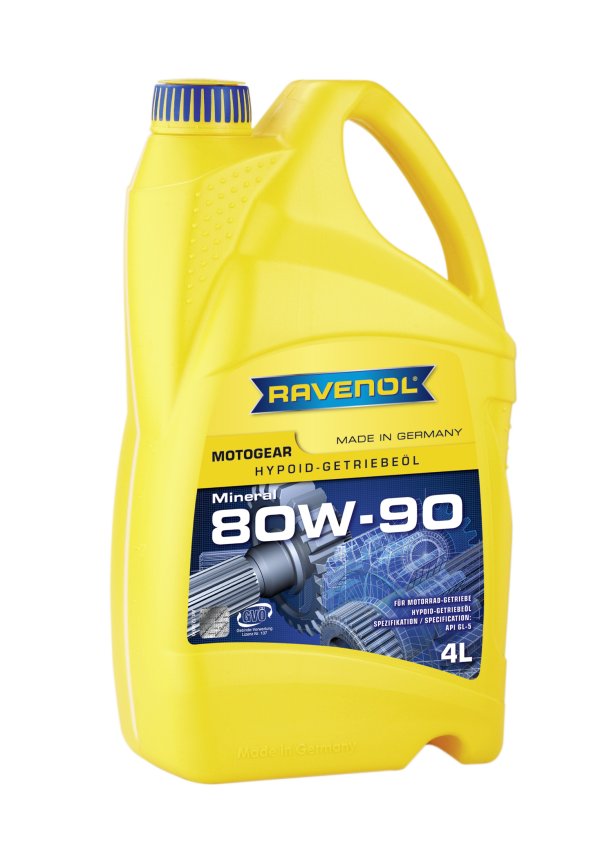

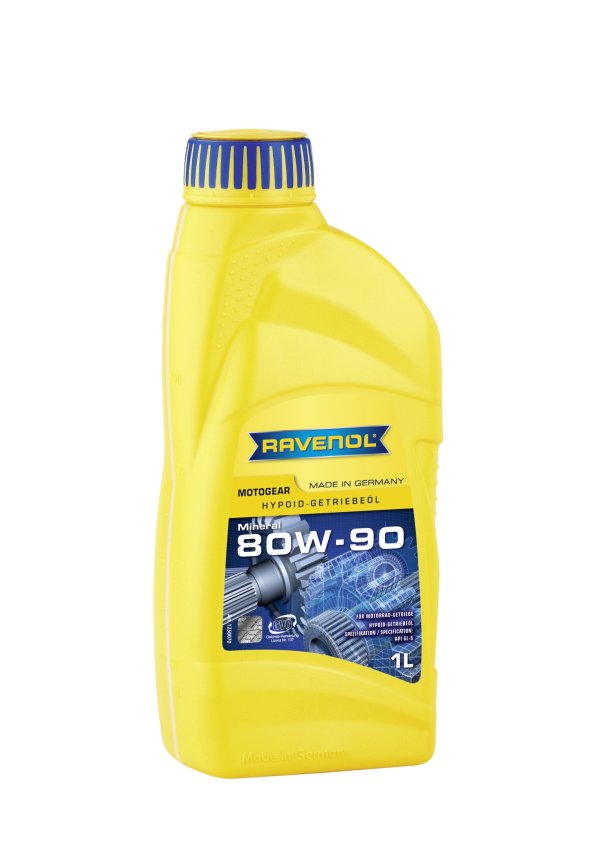

RAVENOL MOTOGEAR SAE 80W-90 GL-5

Inactive options are available upon request

Category: Gear oil for manual transmissions and drive axis
Item number: 1250070
Viscosity: 80W-90
Specification: API GL-5, SAE 80W-90
Oil type: Mineral oil
Application area: Motorcycle

RAVENOL MOTOGEAR SAE 80W-90 GL-5 is a mineral based hypoid transmission fluid with special effective additives for manual transmissions. A high load-carrying capacity guarantees optimum gearbox lubrication even at high temperatures.

RAVENOL MOTOGEAR SAE 80W-90 GL-5 ensures a strong oil film for lubrication even under the most extreme dynamic conditions.

RAVENOL MOTOGEAR SAE 80W-90 GL-5 reduces friction, prevents wear and corrosion.

Application Note

RAVENOL MOTOGEAR SAE 80W-90 GL-5 is suitable for use in manual transmissions for 2- and 4-stroke motorcycles if oil according to SAE 80W-90 API GL-5 is specified.

Characteristics

  • High pressure stable lubrication film, thus outstanding wear protection under any stress
  • Reduced transmission noise and the best transmission efficiency under full load, i.e. even with very hot oil
  • Excellent oxidation stability, no foaming
  • No oil thickening or deposits
  • Extraordinary ageing stability
  • Excellent viscosity-temperature properties
  • Effective wear protection
  • Extraordinary corrosion protection, no rust, won’t harm non-ferrous metals
  • Neutral to sealants, transmissions stay tight, no oil loss

Technical Product Data

PropertyUnitDataAudit
Density at 20 °Ckg/m³882,0EN ISO 12185
ColourbraunVISUELL
Viscosity at 100 °Cmm²/s14,3DIN 51562-1
Viscosity at 40 °Cmm²/s130,3DIN 51562-1
Viscosity Index VI108DIN ISO 2909
Pourpoint°C-33DIN ISO 3016
Flashpoint°C222DIN EN ISO 2592

All indicated data are approximate values and are subject to the commercial fluctuations.
