Category:
Gear oil for manual transmissions and drive axis
Item number:
1222101
Viscosity:
75W-90
Specification:
API GL-4
Oil type:
Synthetic oil

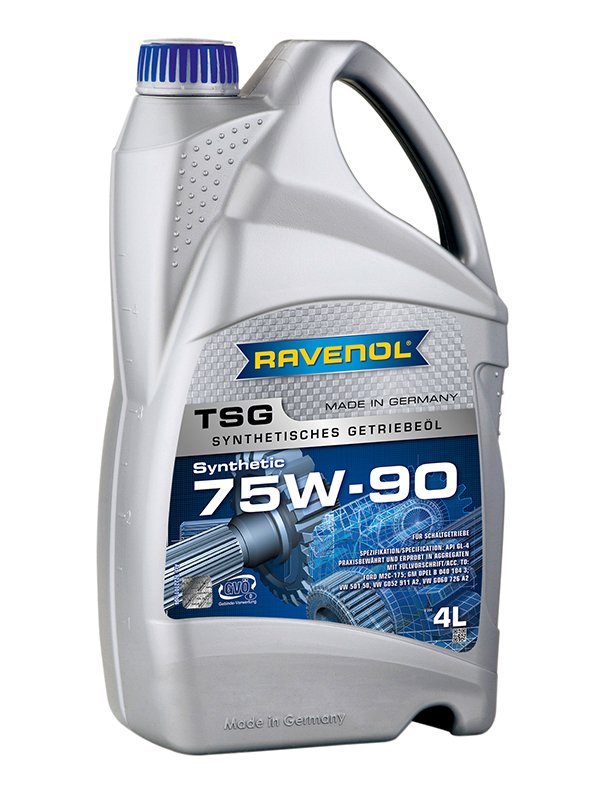

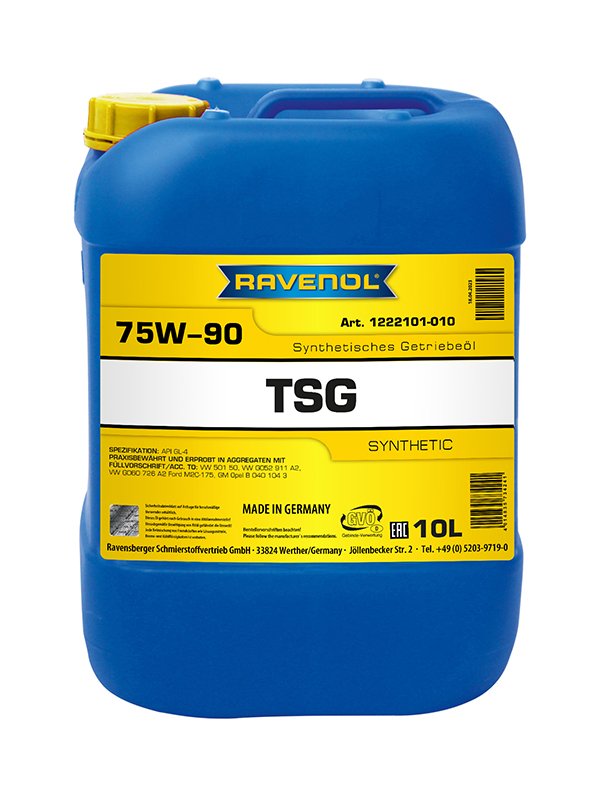

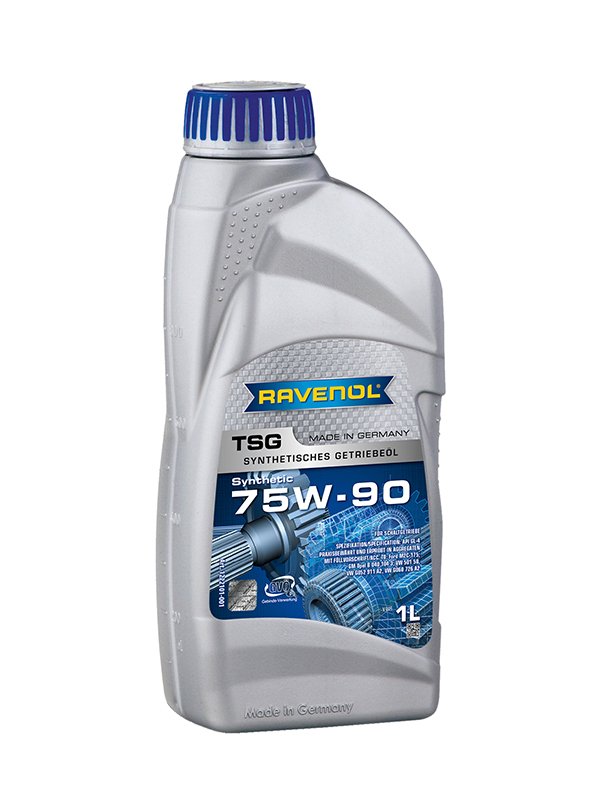

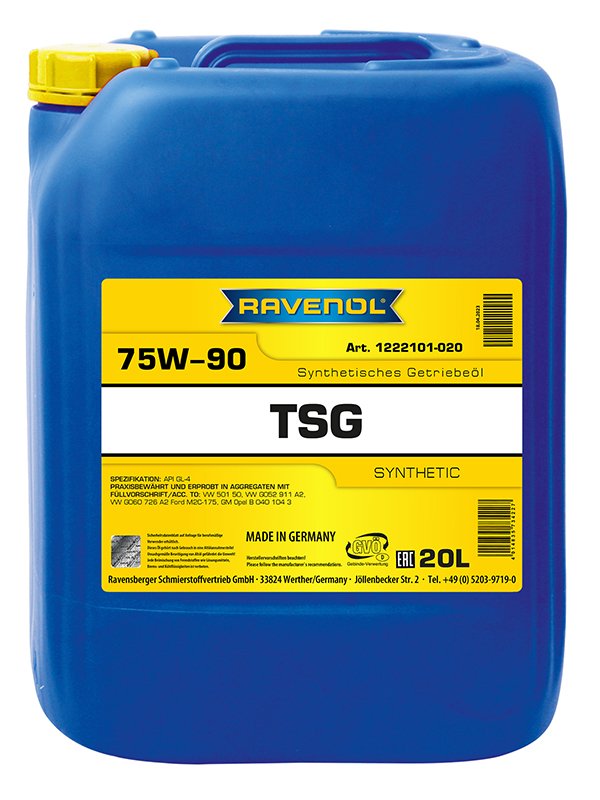

RAVENOL Getriebeoel TSG SAE 75W-90 is a synthetic multi-purpose transmission oil for maximum duty manual transmissions.
RAVENOL Getriebeoel TSG SAE 75W-90 is designed based on high-quality synthetic base oils with special additive treatment and inhibition coordinated to the increased stress on manual transmission oils and ensuring trouble-free transmission function.
Application Note
RAVENOL Getriebeoel TSG SAE 75W-90 is suitable for highly stressed manual transmissions (with and without synchronising), transfer cases and steering gearboxes in vehicles and work machines.
Characteristics
- excellent ageing resistance
- extra high pressure absorption properties
- optimal viscosity-temperature properties
- excellent low temperature properties
- shearing stability
- stable lubricating film even under high stress
- extremely low pour point
- good elastomer compatibility to prevent leaks
Technical Product Data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Density at 20 °C | kg/m³ | 837,5 | EN ISO 12185 |
| Colour | hellgelb | VISUELL | |
| Viscosity at 100 °C | mm²/s | 15,7 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 95,7 | DIN 51562-1 |
| Viscosity Index VI | 176 | DIN ISO 2909 | |
| Brookfield Viscosity at -40 °C | mPa*s | 88.700 | ASTM D2983 |
| Pourpoint | °C | -42 | DIN ISO 3016 |
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
All indicated data are approximate values and are subject to the commercial fluctuations.
