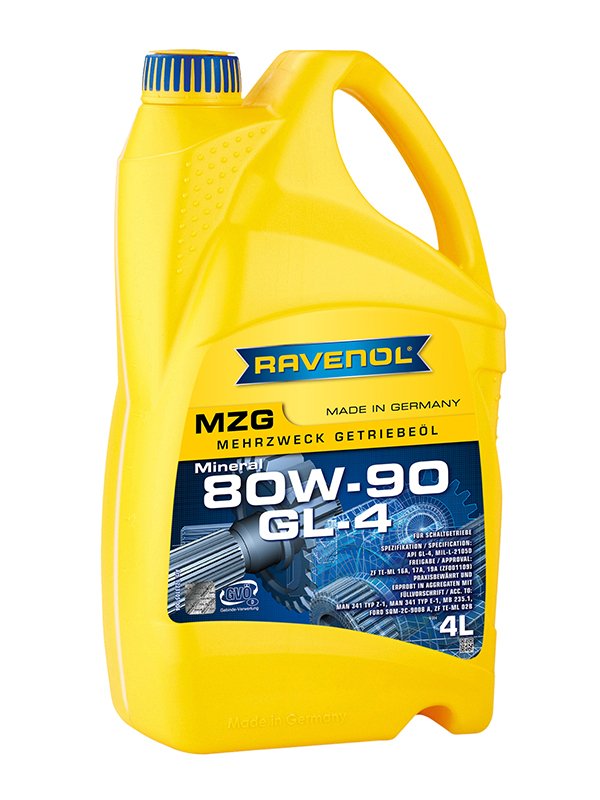

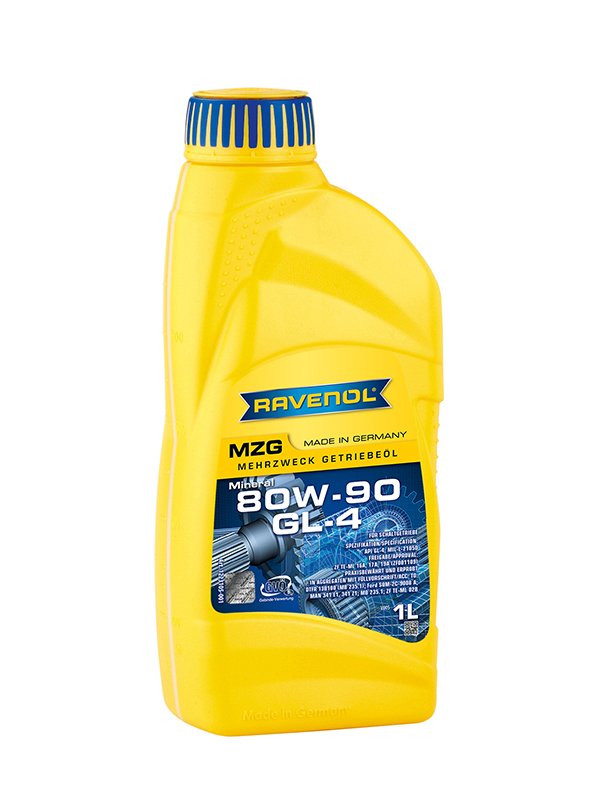

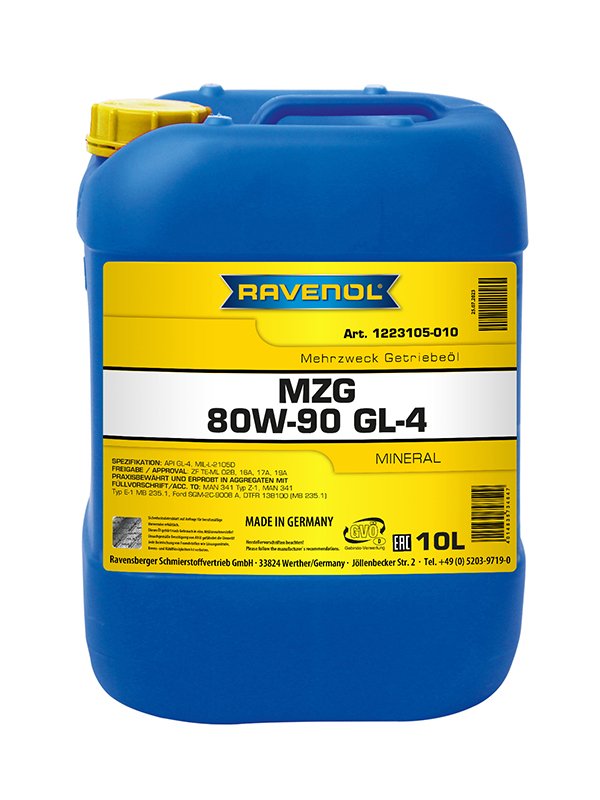

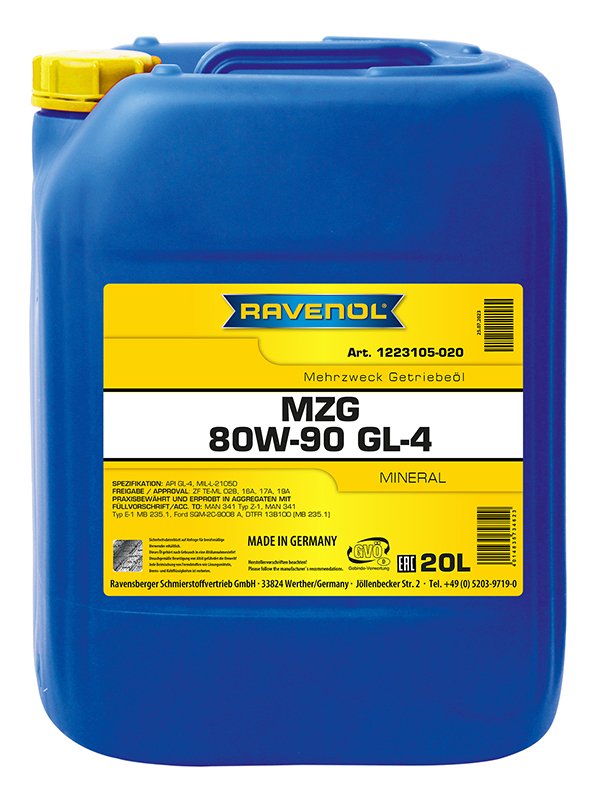

RAVENOL Getriebeoel MZG SAE 80W-90 GL-4

Inactive options are available upon request

Category: Gear oil for manual transmissions and drive axis
Item number: 1223105
Viscosity: 80W-90
Specification: API GL-4, MIL-L-2105 D
Oil type: Mineral oil

RAVENOL Getriebeoel MZG SAE 80W-90 GL contains high-quality base oils with a balanced active agent component additive. This ensures a high load carrying capacity, wear protection and oxidation stability.Above-average viscosity-temperature properties, low solidification points and last but not least the prevention of foaming allows for use at various operating conditions.

Application Note

RAVENOL Getriebeoel MZG SAE 80W-90 GL is suitable for lubricating manual transmissions, differential- and steering gears in vehicles requiring EP transmission oil according to manufacturer specifications.

Characteristics

  • well adhering, pressure resistant lubricating films
  • excellent oxidation stability
  • above-average viscosity-temperature properties
  • anti-wear effect
  • good air release characteristics, no foaming
  • neutral to metal and sealants

Technical Product Data

PropertyUnitDataAudit
Density at 20 °Ckg/m³879,0EN ISO 12185
ColourgelbbraunVISUELL
Viscosity at 100 °Cmm²/s14,0DIN 51562-1
Viscosity at 40 °Cmm²/s126,9DIN 51562-1
Viscosity Index VI108DIN ISO 2909
Brookfield Viscosity at -26 °CmPa*s45.600ASTM D2983
Pourpoint°C-33DIN ISO 3016
Flashpoint°C244DIN EN ISO 2592
Copper Strip Test at 121 °C1bASTM D130

All indicated data are approximate values and are subject to the commercial fluctuations.
