Category:
Gear oil for automatic transmissions
Item number:
1213101
Oil type:
Mineral oil
Recommendation:
Allison C4,
Caterpillar TO-2,
DTFR 13C120 (MB 236.2),
MAN 339 A,
MB 236.2,
Renk Doromat,
Type A Suffix A (TASA)

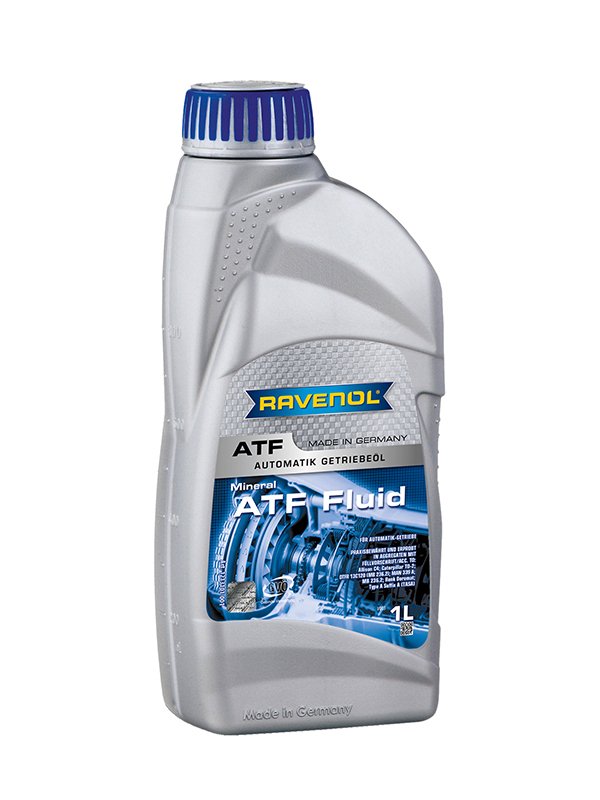

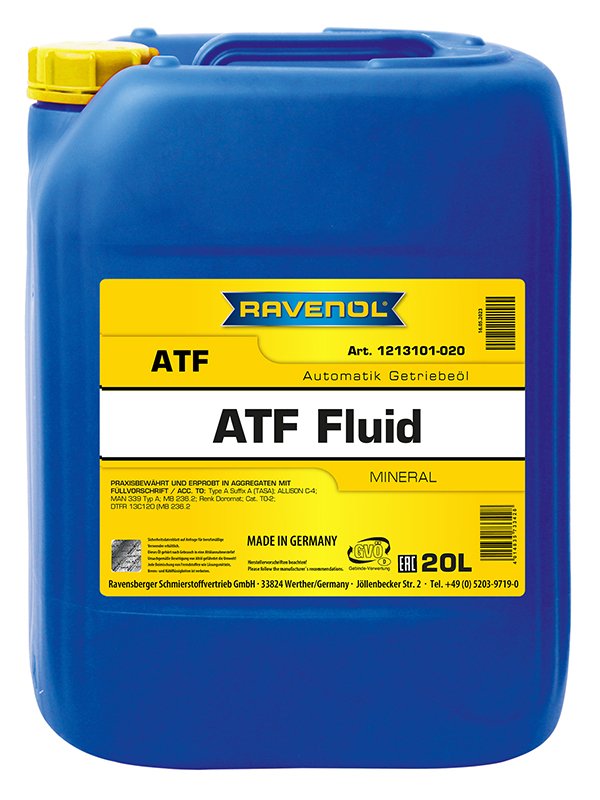

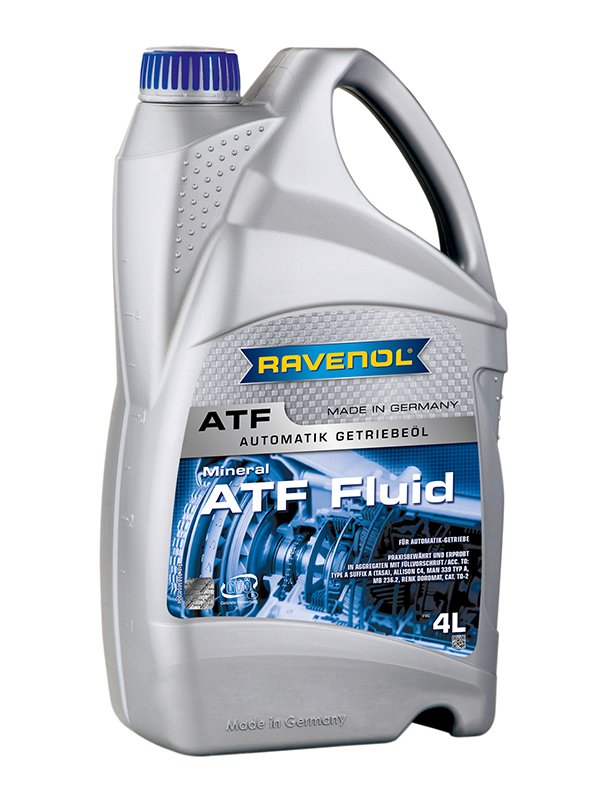

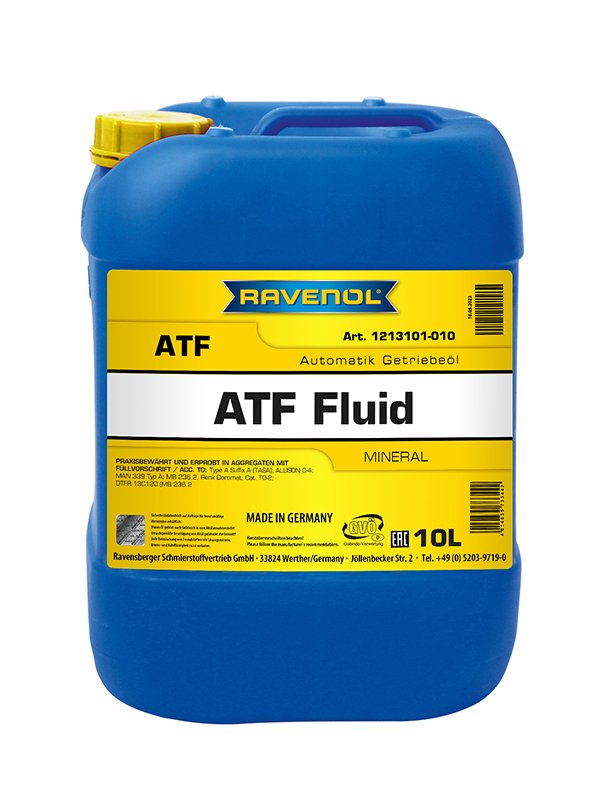

RAVENOL ATF Fluid is designed on the basis of mineral refined base oils with a special additive and inhibition, which guarantee a perfect function.
RAVENOL ATF Fluid is a very high quality mineral gear fluid for automatic fluid couplings and torque converters as well as power steering aids.
Application Note
RAVENOL ATF Fluid should be used according to the instructions of the unit manufacturer in: Automatic transmissions, turbo couplings, servo clutches and other hydrostatic and hydrodynamic systems.
RAVENOL ATF Fluid must not be used if ATF Type DEXRON B or DEXRON D or ATF Type M2C-33 E / F / G are expressly mentioned as filling instructions.
Characteristics
- Exceptionally good resistance to aging
- A very good viscosity-temperature behaviour
- Effective protection against wear
- Very good oxidation stability and low foaming tendency
- Enhanced protection against corrosion
- An extremely low pour point
- Compatible with all types of sealing materials
- Miscibility and compatibility with all brands of ATF's with Type A Suffix A specification
Technical Product Data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Colour | Rot | VISUELL | |
| Viscosity at 100 °C | mm²/s | 7,4 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 34,6 | DIN 51562-1 |
| Viscosity Index VI | 187 | DIN ISO 2909 | |
| Density at 20 °C | kg/m³ | 848,0 | EN ISO 12185 |
| Flashpoint | °C | 210 | DIN EN ISO 2592 |
| Pourpoint | °C | -48 | DIN ISO 3016 |
All indicated data are approximate values and are subject to the commercial fluctuations.
