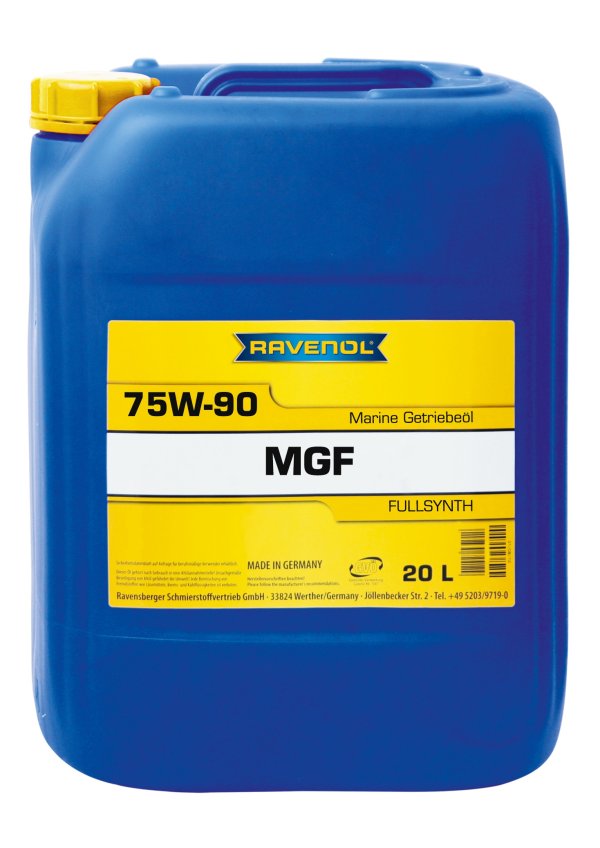

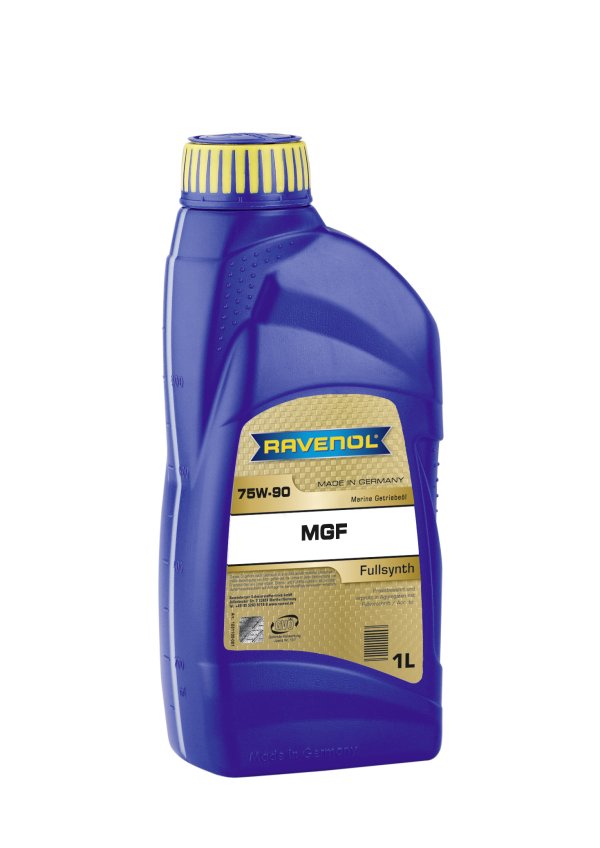

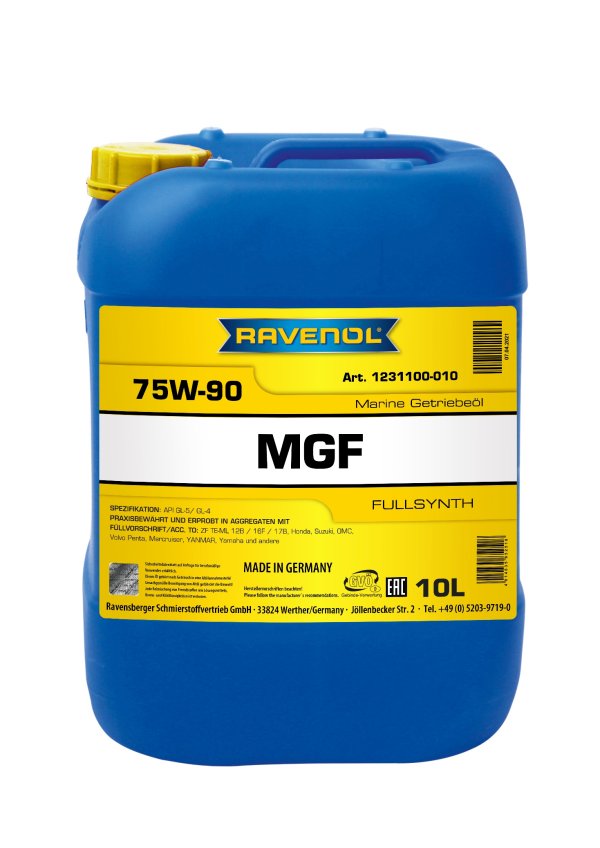

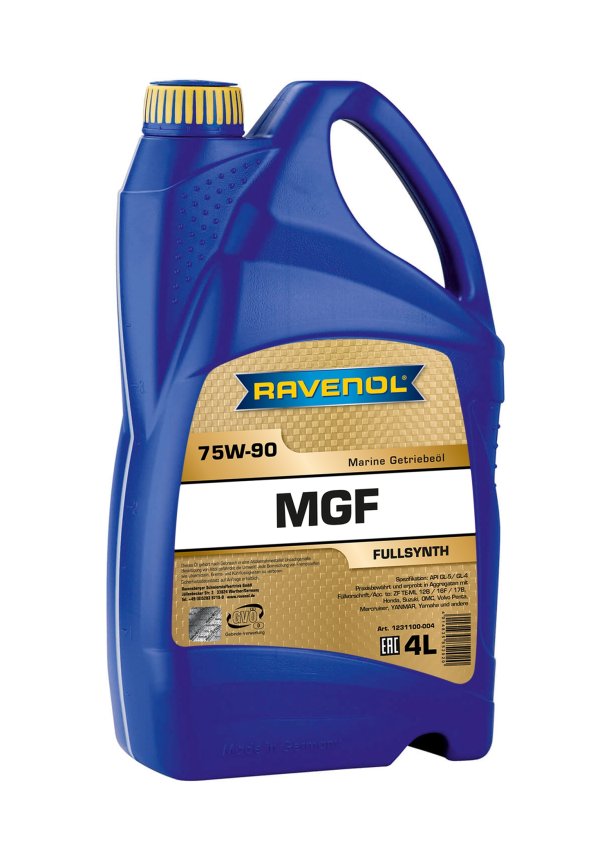

RAVENOL MARINE Gear Fullsynth MGF SAE 75W-90 is a full synthetic high performance transmission oil which can be preferably used in the marine sector. It contains high quality synthetic base oils, with a balanced combination of ingredients. This ensures a high load carrying capacity, wear protection and oxidation stability.
RAVENOL MARINE Gear Fullsynth MGF SAE 75W-90 is designed on a special formulation ensuring trouble-free transmission function, even under wide extremes of temperature and severe operating conditions.
This allows the use of RAVENOL MARINE Gear Fullsynth MGF SAE 75W-90 under different operating conditions.
Application Note
RAVENOL MARINE Gear Fullsynth MGF SAE 75W-90 is a gear oil for lubricating boat and ship transmissions (in- and outboard) for stern- and revengedrive units as well as for Z-drives when a synthetic GL-5/ GL-4 transmission oil is required.
Follow the manufacturers’ recommendations!
Characteristics
- excellent oxidation stability
- very good viscosity-temperature behaviour, high temperature resistance
- high wear protection effect, even under extreme conditions
- extraordinary good ageing stability
- a very good resistance towards high pressures and shock loads
- Neutral to metal and sealants
Technical Product Data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Density at 20 °C | kg/m³ | 840 | EN ISO 12185 |
| Colour | blau | VISUELL | |
| Viscosity at 100 °C | mm²/s | 16,8 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 108,8 | DIN 51562-1 |
| Viscosity Index VI | 168 | DIN ISO 2909 | |
| Brookfield Viscosity at -40 °C | mPa*s | 47.000 | ASTM D2983 |
| Pourpoint | °C | -45 | DIN ISO 3016 |
| Flashpoint | °C | 226 | DIN EN ISO 2592 |
| Copper Strip Test at 121 °C | 1a | ASTM D130 |
All indicated data are approximate values and are subject to the commercial fluctuations.
