Category:
Engine oil for agricultural vehicles and construct
Item number:
1310614
Viscosity:
40
Oil type:
Mineral oil
Recommendation:
Allison C4,
Caterpillar TO-4,
Eaton Fuller,
Komatsu KES 07.868.1 (2002),
TO-4M,
ZF TE-ML 03C,
ZF TE-ML 07F
Application area:
Agricultural machinery

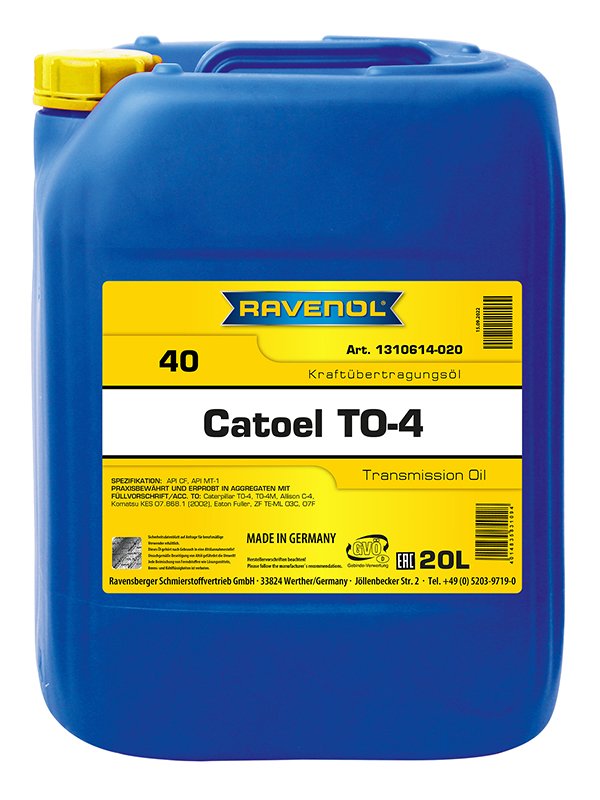

RAVENOL CATOEL TO-4 SAE 40 is a special transmission oil developed specifically to meet the stringent requirements of the Caterpillar TO-4 specification. It ensures maximum wear protection in different gears, like side drives and differentials optimized friction coefficient in the power-shift transmissions, wet brakes and clutches and provides maximum service life of the units.
Application Note
RAVENOL CATOEL TO-4 SAE 40 is formulated to meet the stringent Caterpillar TO-4 specification, and is suitable for use in transmissions, final drives, hydraulic systems, wet brakes and clutches that require this specification of lubricant.
Characteristics
- Highest wear protection
- High oxidation stability
- Excellent viscosity-temperature behavior
- Optimization of friction coefficient behavior
- Guarantees maximum life of the units
Technical Product Data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Density at 20 °C | kg/m³ | 889,0 | EN ISO 12185 |
| Colour | gelbbraun | VISUELL | |
| Viscosity at 100 °C | mm²/s | 13,6 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 134,0 | DIN 51562-1 |
| Viscosity Index VI | 96 | DIN ISO 2909 | |
| Pourpoint | °C | -21 | DIN ISO 3016 |
| Flashpoint | °C | 270 | DIN EN ISO 2592 |
All indicated data are approximate values and are subject to the commercial fluctuations.
