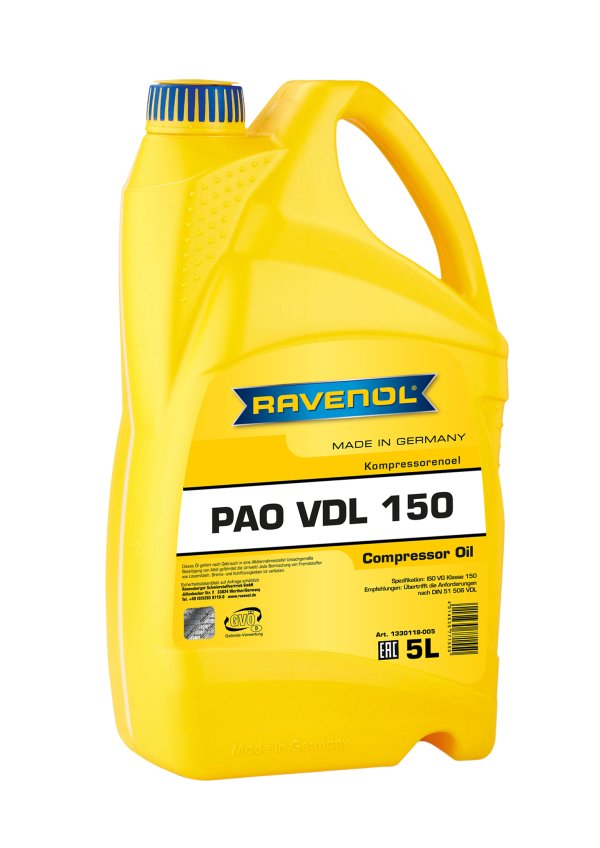

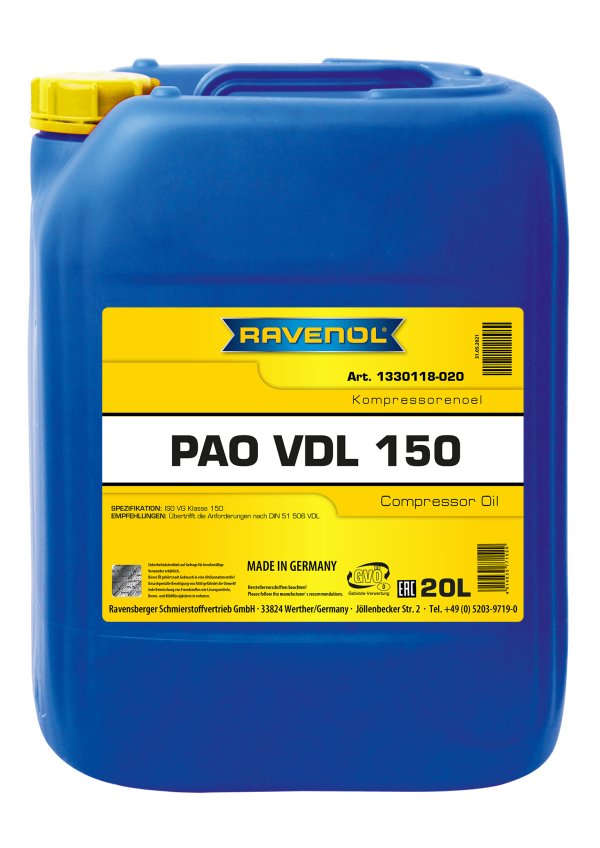

RAVENOL Kompressorenoel PAO VDL 150

Inactive options are available upon request

Category: Industrial oil
Item number: 1330118
Viscosity: 150
Specification: ISO VG Klasse 150
Oil type: Fully synthetic
Application area: Industry

RAVENOL Kompressorenoel PAO VDL 150 is a premium quality compressor oil of the ISO VG Class 150, which is specially designed to extend the service life time of compressors.

RAVENOL Kompressorenoel PAO VDL 150 contains additives, which ensure an excellent wear protection and protects against residue and corrosion (both steel and non-ferrous metal). Most compressors have to work under high temperature so that the used oil has to have a good aging resistance but also a low residue building.

In addition RAVENOL Kompressorenoel PAO VDL 150 conforms to its ISO VG Class and shows a remarkable low evaporative behavior an outstanding demulsifying power as well as excellent air separation ability. It ensures certain lubrication not only in the high temperature range but also in cold condition of the compressor to reach a wear minimisation. By the use of selected and matched additives the tendency of coking and flammable residues is minimized.

Application Note

RAVENOL Kompressorenoel PAO VDL 150 is recommended for all compressors especially in rotary screw air compressors.

Characteristics

  • High oxidation stability.
  • Excellent protection against rust and corrosion.
  • Best wear protection. Keeps compressor components free of sludge and varnish to ensure trouble free operation and lower maintenance costs on fluid change-out.
  • Very low evaporative behavior and an outstanding demulsifying power.
  • Excellent air separation ability.
  • Better resistance to oxidative breakdown.
  • Extends oil change intervals up to 8.000 hours service in rotary screw compressors and 1.000 hours service in rotary vane compressors.
  • Improves compressor operating efficiency, lower energy consumption costs by reducing of oil thickening.

Technical Product Data

PropertyUnitDataAudit
Density at 20 °Ckg/m³868,0EN ISO 12185
ColourgelbVISUELL
Viscosity at 100 °Cmm²/s16,1DIN 51562-1
Viscosity at 40 °Cmm²/s146,5DIN 51562-1
Viscosity Index VI115DIN ISO 2909
Pourpoint°C-24DIN ISO 3016
Noack Volatility% M/M1,32ASTM D5800
Flashpoint°C287DIN EN ISO 2592
Acid Number TANmgKOH/g0,14ASTM D664
Water separationml/54°Cmin41-40-0 (10)ASTM D1401
Foaming tendency---
Seq. I at 24 °Cml/ml0/0ASTM D892
Seq. II at 93,5 °Cml/ml10/0ASTM D892
Seq. III at 24 °C after 93,5 °Cml/ml0/0ASTM D892
Corrosion Protection:---
Copper Corrosion:3h 100 °C1aASTM D130
Rust A – distilled WaterbestandenASTM D665
Rust B – Synthetic Sea WaterbestandenASTM D665
Residue & Ash:---
Conradson Carbon Residue mass%<0,1ASTM D524

All indicated data are approximate values and are subject to the commercial fluctuations.
