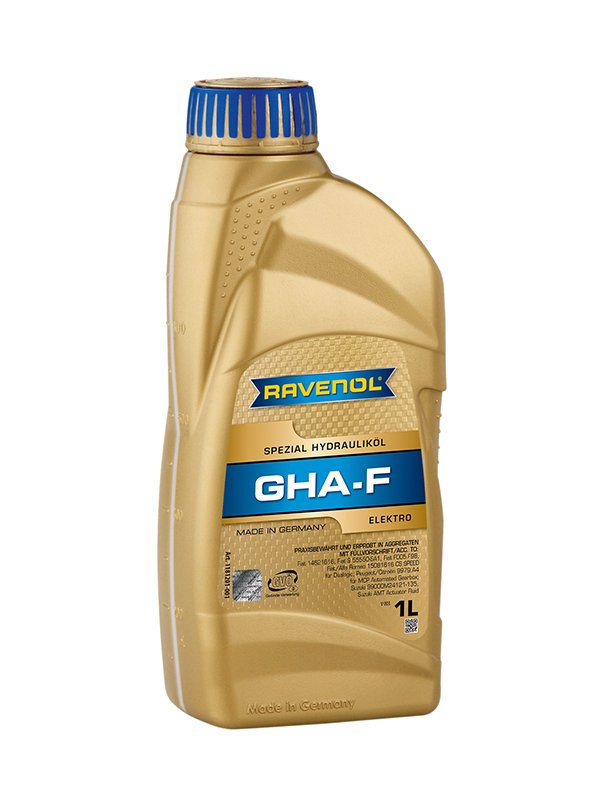

RAVENOL Gearbox Hydraulic Actuator Fluid GHA-F is a special hydraulic fluid, based on synthetic and mineral oil with non-ash forming additives.
The properties of RAVENOL Gearbox Hydraulic Actuator Fluid GHA-F are decisively determined by its special formulation. We guarantee an excellent low temperature stability.
Application Note
RAVENOL Gearbox Hydraulic Actuator Fluid GHA-F is designed for a range of application from -40°C to +100°C.
RAVENOL Gearbox Hydraulic Actuator Fluid GHA-F is used in electrically controlled MCP gearboxes from Peugeot/Citroën and in Dualogic and Selespeed gearboxes from FIAT/Alfa Romeo and therefore, shows ideal performance as a special hydraulic fluid in electrohydraulic and electrically controlled gears and gearshifts.
Characteristics
- Extremely low pour point.
- Improved viscosity and friction value characteristics.
- Very good wear protection.
- An excellent thermal stability.
- Improved EP properties.
- Good foaming characteristics.
- Neutral behaviour towards sealing compounds.
- Reliable protection against corrosion.
Technical Product Data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Density at 20 °C | kg/m³ | 827,0 | EN ISO 12185 |
| Colour | grün | VISUELL | |
| Viscosity at 100 °C | mm²/s | 6,6 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 19,7 | DIN 51562-1 |
| Viscosity Index VI | 333 | DIN ISO 2909 | |
| Pourpoint | °C | -54 | DIN ISO 3016 |
| Flashpoint | °C | 164 | DIN EN ISO 2592 |
All indicated data are approximate values and are subject to the commercial fluctuations.
